A Good Instrument is a Bad Control: Part II

Recap of Part I

Suppose that \(X\) is our endogenous regressor of interest in the linear causal model \(Y = \alpha + \beta X + U\) where \(\text{Cov}(X,U) \neq 0\) but \(\text{Cov}(Z,U) = 0\), and where \(Z\) is an instrumental variable that is correlated with \(X\). Now consider the population linear regression of \(Y\) on both \(X\) and \(Z\), namely \[ Y = \gamma_0 + \gamma_X X + \gamma_Z Z + \eta \] where the error term \(\eta\) satisfies \(\text{Cov}(X,\eta) = \text{Cov}(Z,\eta) = \mathbb{E}(\eta) = 0\) by construction. Further define the population linear regression of \(X\) on \(Z\), namely \[ X = \pi_0 + \pi_Z Z + V \] where the error term \(V\) satisfies \(\text{Cov}(Z,V) = \mathbb{E}(V) = 0\) by construction. Finally, define the population linear regression of \(Y\) on \(X\) as \[ Y = \delta_0 + \delta_X X + \epsilon, \quad \text{Cov}(X,\epsilon) = \mathbb{E}(\epsilon) = 0. \] Using this notation, the result from my earlier post can be written as \[ \delta_X = \beta + \frac{\text{Cov}(X,U)}{\text{Var}(X)}, \quad \text{and} \quad \gamma_X = \beta + \frac{\text{Cov}(X,U)}{\text{Var}(V)}. \] To understand what this tells us, notice that, using the “first-stage” regression of \(X\) on \(Z\), we can write \[ \text{Var}(V) \equiv \text{Var}(X - \pi_0 - \pi_Z Z) = \text{Var}(X) - \pi_Z^2 \text{Var}(Z). \] This shows that whenever \(Z\) is a relevant instrument \((\pi_Z \neq 0)\), we must have \(\text{Var}(V) < \text{Var}(X)\). It follows that \(\gamma_X\) is more biased than \(\delta_X\): adding \(Z\) as a control regressor only makes our estimate of the effect of \(X\) worse!²

What about \(\gamma_Z\)?

So if \(Z\) soaks up the good variation in \(X\), what about the coefficient \(\gamma_Z\) on the instrument \(Z\)? Perhaps this coefficient contains some useful information about the causal effect of \(X\) on \(Y\)? To find out, we’ll use the FWL Theorem as follows: \[ \gamma_Z = \frac{\text{Cov}(Y,\tilde{Z})}{\text{Var}(\tilde{Z})} \] where \(Z = \lambda_0 + \lambda_X X + \tilde{Z}\) is the population linear regression of \(Z\) on \(X\). This is the reverse of the first-stage regression of \(X\) on \(Z\) described above. Here the error term \(\tilde{Z}\) satisfies \(\mathbb{E}(\tilde{Z}) = \text{Cov}(\tilde{Z}, X) = 0\) by construction. Substituting the causal model gives \[ \text{Cov}(Y, \tilde{Z}) = \text{Cov}(\alpha + \beta X + U, \tilde{Z}) = \beta \text{Cov}(X,\tilde{Z}) + \text{Cov}(U,\tilde{Z}) = \text{Cov}(U, \tilde{Z}) \] since \(\text{Cov}(X,\tilde{Z}) = 0\) by construction. Now, substituting the definition of \(\tilde{Z}\), \[ \text{Cov}(U, \tilde{Z}) = \text{Cov}(U, Z - \lambda_0 - \lambda_X X) = \text{Cov}(U,Z) - \lambda_X \text{Cov}(U,X) = -\lambda_X \text{Cov}(X,U) \] since \(\text{Cov}(U,Z) = 0\) by assumption. We can already see that \(\gamma_Z\) is not going to help us learn about \(\beta\). First of all, the term containing \(\beta\) vanished; second of all, the term that remained is polluted by the endogeneity of \(X\), namely \(\text{Cov}(X,U)\).

Still, let’s see if we can get a clean expression for \(\gamma_Z\). So far we have calculated the numerator of the FWL expression, showing that \(\text{Cov}(Y,\tilde{Z}) = -\lambda_X \text{Cov}(X,U)\). The next step is to calculate \(\text{Var}(\tilde{Z})\): \[ \text{Var}(\tilde{Z}) = \text{Var}(Z - \lambda_0 - \lambda_X X) = \text{Var}(Z) + \lambda_X^2 \text{Var}(X) - 2\lambda_X \text{Cov}(X,Z). \] Since \(\lambda_X \equiv \text{Cov}(X,Z)/\text{Var}(X)\), our expression for \(\text{Var}(\tilde{Z})\) simplifies to \[ \text{Var}(\tilde{Z}) = \text{Var}(Z) - \lambda_X \text{Cov}(X,Z) \] so we have discovered that: \[ \gamma_Z = \frac{-\lambda_X \text{Cov}(X,U)}{\text{Var}(Z) - \lambda_X \text{Cov}(X,Z)}. \]

Call me old-fashioned, but I really don’t like having \(\lambda_X\) in that expression. I’d feel much happier if we could find a way to re-write this in terms of the more familiar IV first-stage coefficient \(\pi_Z\). Let’s give it a try! Let’s use my favorite trick of multiplying by one: \[ \lambda_X \equiv \frac{\text{Cov}(X,Z)}{\text{Var}(X)} = \frac{\text{Cov}(X,Z)}{\text{Var}(X)} \cdot \frac{\text{Var}(Z)}{\text{Var}(Z)} = \pi_Z \cdot \frac{\text{Var}(Z)}{\text{Var}(X)}. \] Substituting for \(\lambda_X\) gives \[ \gamma_Z = \frac{-\pi_Z \frac{\text{Var}(Z)}{\text{Var}(X)} \text{Cov}(X,U)}{\text{Var}(Z) - \pi_Z \frac{\text{Var}(Z)}{\text{Var}(X)} \text{Cov}(X,Z)} = \frac{-\pi_Z \text{Cov}(X,U)}{\text{Var}(X) - \pi_Z^2 \text{Var}(Z)}. \] We can simplify this even further by substituting \(\text{Var}(V) = \text{Var}(X) - \pi_Z^2 \text{Var}(Z)\) from above to obtain \[ \gamma_Z = -\pi_Z \frac{\text{Cov}(X,U)}{\text{Var}(V)}. \] And now we recognize something from above: \(\text{Cov}(X,U)/\text{Var}(V)\) was the bias of \(\gamma_X\) relative to the true causal effect \(\beta\)! This means we can also write \(\gamma_Z = -\pi_Z (\gamma_X - \beta)\).

A Little Simulation

We seem to be doing an awful lot of algebra on this blog lately. To make sure that we haven’t made any silly mistakes, let’s check our work using a little simulation experiment taken from my earlier post. Spoiler alert: everything checks out!

set.seed(1234)
n <- 1e5

# Simulate instrument (z)
z <- rnorm(n)

# Simulate error terms (u, v)
library(mvtnorm)
Rho <- matrix(c(1, 0.5,
                0.5, 1), 2, 2, byrow = TRUE)
errors <- rmvnorm(n, sigma = Rho)

# Simulate linear causal model
u <- errors[, 1]
v <- errors[, 2]
x <- 0.5 + 0.8 * z + v
y <- -0.3 + x + u

# Regression of y on x and z
gamma <- lm(y ~ x + z) |>
  coefficients()

gamma

## (Intercept)           x           z
##  -0.5471213   1.5018705  -0.3981116

# First-stage regression of x on z
pi <- lm(x ~ z) |>
  coefficients()

pi

## (Intercept)           z
##   0.5020338   0.7963889

# Compare two different expressions for gamma_Z to the estimate itself
c(gamma_z = unname(gamma[3]),
  version1 = unname(-0.8 * cov(x, u) / var(v)),
  version2 = unname(-pi[2] * (gamma[2] - 1))
)

##    gamma_z   version1   version2
## -0.3981116 -0.4024918 -0.3996841

Making Sense of This Result

So far all we’ve done is horrible, tedious algebra and a little simulation to check that it’s correct. But in fact there’s some very interesting intuition for the results we’ve obtained, intuition that is deeply connected to the idea of a bad control in a directed acyclic graph (DAG).

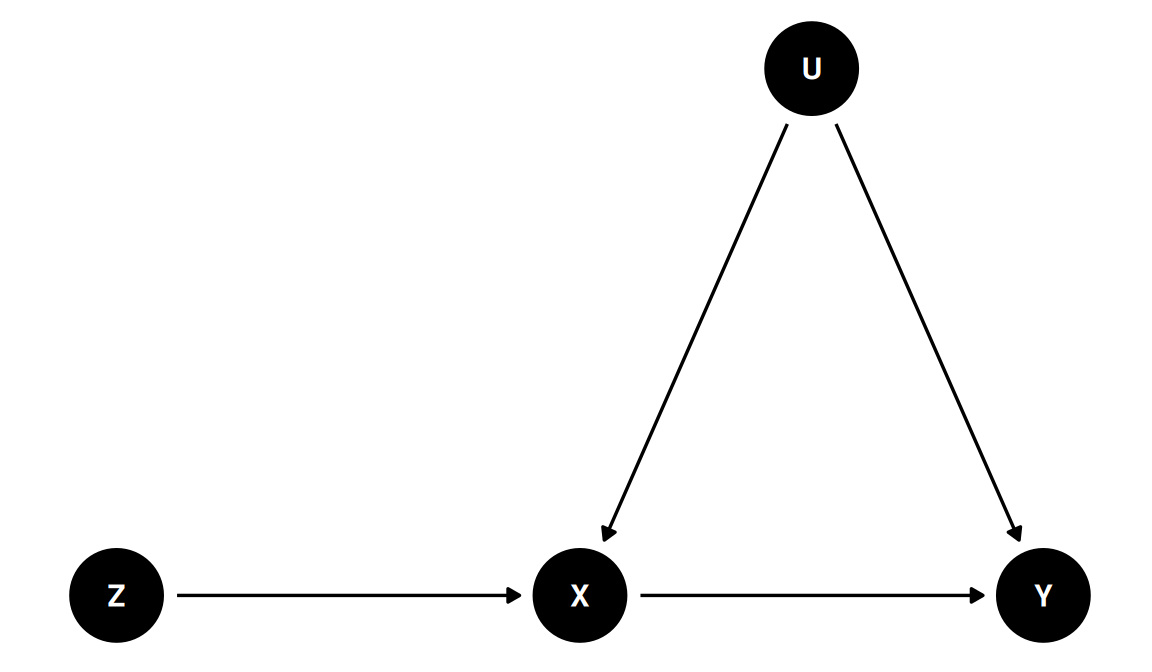

In the model we’ve described above, \(Z\) has a causal effect on \(Y\). This is because \(Z\) causes \(X\) which in turn causes \(Y\). Because \(Z\) is an instrument, its only effect on \(Y\) goes through \(X\). The unobserved confounder \(U\) is a common cause of \(X\) and \(Y\) but is unrelated to \(Z\). Even if you’re not familiar with DAGs, you will probably find this diagram relatively intuitive:

library(ggdag)
library(ggplot2)

iv_dag <- dagify(
  Y ~ X + U,
  X ~ Z + U,
  coords = list(
    x = c(Z = 1, X = 3, U = 4, Y = 5),
    y = c(Z = 1, X = 1, U = 2, Y = 1)
  )
)

iv_dag |>
  ggdag() +
  theme_dag()

In the figure, an arrow from \(A\) to \(B\) means that \(A\) is a cause of \(B\). A causal path, is a sequence of arrows that “obeys one-way signs” and leads from \(A\) to \(B\). Because there is a directed path from \(Z\) to \(Y\), we say that \(Z\) is a cause of \(Y\). To see this using our regression equations from above, substitute the IV first-stage into the linear causal model to obtain \[ \begin{align*} Y &= \alpha + \beta X + U = \alpha + \beta (\pi_0 + \pi_Z Z + V) + U\\ &= (\alpha + \beta \pi_0) + \beta \pi_Z Z + (\beta V + U). \end{align*} \] This gives us a linear equation with \(Y\) on the left-hand side and \(Z\) alone on the right-hand side. This is called the “reduced-form” regression. Since \(\text{Cov}(Z,U)=0\) by assumption and \(\text{Cov}(Z,V) = 0\) by construction, the reduced-form is a bona fide population linear regression. That means that regressing \(Y\) on \(Z\) will indeed give us a slope that equals \(\pi_Z \times \beta\). To see why the slope is a product, recall that \(\pi_Z\) is the causal effect of \(Z\) on \(X\), the \(Z\rightarrow X\) arrow in the diagram, while \(\beta\) is the causal effect of \(X\) on \(Y\), the \(X \rightarrow Y\) arrow in the diagram. Because the only way \(Z\) can influence \(Y\) is through \(X\), it makes sense that the causal effect of \(Z\) on \(Y\) is the product of these two effects.

So now we see that the reduced-form coefficient \(\pi_Z \beta\) is indeed a causal effect. How does this relate to \(\gamma_Z\)? Remember that \(\gamma_Z\) was the coefficient on \(Z\) in a regression of \(Y\) on \(Z\) and \(X\), in other words a regression that adjusted for \(X\). So is adjusting for \(X\) the right call? Absolutely not! There are no back-door paths between \(Z\) and \(Y\).³ This means that we don’t have to adjust for anything to learn the causal effect of \(Z\) on \(Y\). In fact adjusting for \(X\) is a mistake for two different reasons.

First, \(X\) is a mediator on the path \(Z \rightarrow X \rightarrow Y\). If there were no confounding, i.e. if \(\text{Cov}(X,U) = 0\) so there is no \(U\rightarrow X\) arrow, adjusting for \(X\) would block the only causal path from \(Z\) to \(Y\). We can see this in our equations from above. Suppose that \(\text{Cov}(X,U) = 0\). Then we have \(\gamma_X = \beta\) but \(\gamma_Z = 0\)! There was a dead giveaway in our derivation: the formula for \(\gamma_Z\) doesn’t depend on \(\beta\) at all.

Second, because there is confounding, adjusting for \(X\) creates a spurious association between \(Z\) and \(Y\) through the back-door path \(Z \rightarrow X \leftarrow U \rightarrow Y\). Because \(X\) is a collider on the path \(Z \rightarrow X \leftarrow U \rightarrow Y\), this path starts out closed. Adjusting for \(X\) opens this back-door path, creating a spurious association between \(Z\) and \(Y\). To see why this is the case, suppose that \(\beta = 0\). In this case there is no causal effect of \(X\) on \(Y\) and hence no causal effect of \(Z\) on \(Y\). But if \(\text{Cov}(X,U) \neq 0\), then we have \(\gamma_Z \neq 0\)!

So if you want to learn the causal effect of \(Z\) on \(Y\), it’s not just that \(X\) is a bad control; it’s a doubly bad control! Without adjusting for \(X\), everything is fine: the reduced-form regression of \(Y\) on \(Z\) gives us exactly what we’re after.⁴

Epilogue

When I showed this post to another colleague he asked me whether there is any way to learn about \(\beta\) by combining \(\gamma_Z\) and \(\gamma_X\). The answer is no: the regression of \(Y\) on \(X\) and \(Z\) alone doesn’t contain enough information. Since \[ \gamma_Z = -\pi_Z \frac{\text{Cov}(X,U)}{\text{Var}(V)} \quad \text{and} \quad \gamma_X = \beta + \frac{\text{Cov}(X,U)}{\text{Var}(V)} \] we can rearrange to obtain the following expression for \(\beta\): \[ \beta = \gamma_X + \frac{\gamma_Z}{\pi_Z} \] which we can verify in our little simulation example as follows:

gamma[2] + gamma[3]/pi[2]

##        x
## 1.001975

Thus, in order to solve for \(\beta\), we need to run the first-stage regression to learn \(\pi_Z\).
